This products has been used in the field for 25 years
The Tech Term Terminal has proven invaluable for the highways agency for decades, it is reliable and easy to use to update traffic signals across Europe, Middle East, the UAE and South America.
The Product

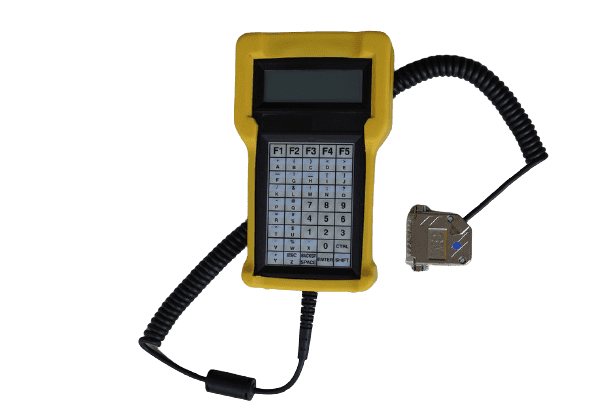

The standard TechTerm TT1NEL-PW-R2-1-BK is optionally available with a black or a yellow (illustrated) protective boot. Included is an extendable coiled cable to a 25-way male D-type connector to plug into the traffic light controller, from which power is derived. A comprehensive set up menu allows selection of the Baud rate and word format. Note that UK traffic light controllers are set up as either:
- 9600; 7 data bits; Even parity, or
- 1200; 7 data bits; Even parity
-
01 What sort of system does this connect with?
All UK sourced traffic light controllers.
-
02 The terminals are a fully functional replacement for the obsolete:
Oyster Terminals Handset
Oyster 4/80 Pocket Terminal
Oyster Traffic Light Controller -
03 Who else is using this product?
Local Authorities, small medium and large traffic light installers.
Email Us Today
We can also arrange repairs and device replacements.
Gallery
- All
- Product
- Connector
- In Use
Standard Traffic Signal Terminal
This terminal has the following specifications:
POWER
| Voltage: | 5V ± 5% at circa 30 to 80mA |
MECHANICAL SPECIFICATIONS
| Height: | 210 mm |
|---|---|
| Width: | 104 mm |
| Depth: | 29 mm |
| Weight: | 230 grammes |
| Case: | General Electric Cycolac® ABS with retractable hanger |
DISPLAY
| Type: | Backlit Supertwist Nematic |
|---|
KEYS, SWITCHES and INDICATORS
| Type: | Membrane |
|---|---|
| Layout: | 45-key (9 rows x 5 columns) |
| Feedback: | Tactile and Audible |
ENVIRONMENTAL
| Storage temperature: | -20 to + 70C |
|---|---|
| Operating temperature: | 0 to + 50C |
| Humidity: | 5% -95% (non-condensing) |
CERTIFICATIONS
| FCC Class A; CENELEC EN 55022:1998 (CISPR Class A); EN 50082-1:1997; CE Approved; UL listed EN 60950:2000 |
|---|
INTERFACE
| Type: | RS-232 |
|---|---|
| Handshake: | DTR, DSR |
| Data Rates: | 300 to 9,600 bps |
| Data Bits: | 7, 8 |
| Parity: | Even, Odd, Mark, Space, Ignore |
| Control Bits 1 Start, 1 Stop | |
| Fixed cable to D-type connector |
Frequently Asked Questions
Please read the following questions and answers to learn more about the product and our service.
-
What is the pricing?
Existing larger account holding customers have purchase agreements. New customers, please contact us to discuss pricing.
-
What solutions are there for troubleshooting issues?
No communications:
a) check the setup.
b) there may be a cable fault.
The display is not operating:
a) there may be a cable fault.
The display is unreadable:
a) check set up.
b) there may be a cable fault.
The keyboard does not work:
a) there may be a keyboard fault
-
What weather conditions can it resist?
The unit has been built to resist light rain.
-
How long will it take to receive units ordered?
You order should be shipped after 1-2 business days if trade credit is available. Otherwise your order will be shipped 1-2 business days after receipt of payment.
We provide a full investigation, quotation and repair service for faulty terminals - please visit: camdata.co.uk/rma to request an authorisation number.
Contact
Before returning, please check that the set up is 1200 or 9600 Baud, seven data bits and EVEN parity.
Please request an RMA number for returning goods for examination, quotation and repair (if authorised):
Location:
Camdata Limited, Cambridge, UK
